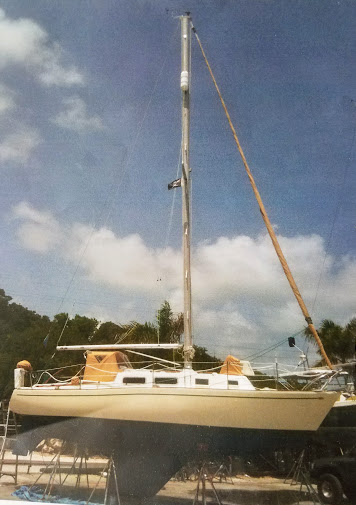

1975 Tartan 30 For Sale

In Key West, FL

Yanmar 2GM20 Diesel

Mainsail Genoa and Spinnaker

Propane Stove/Oven

Water Heater

West Marine 7,000 BTU AC

Xantrex Inverter

Ready for Cruising or Living Aboard: Only $15,000

See Kristy at West Marine, Stock Island

Near Key West, FL 33040

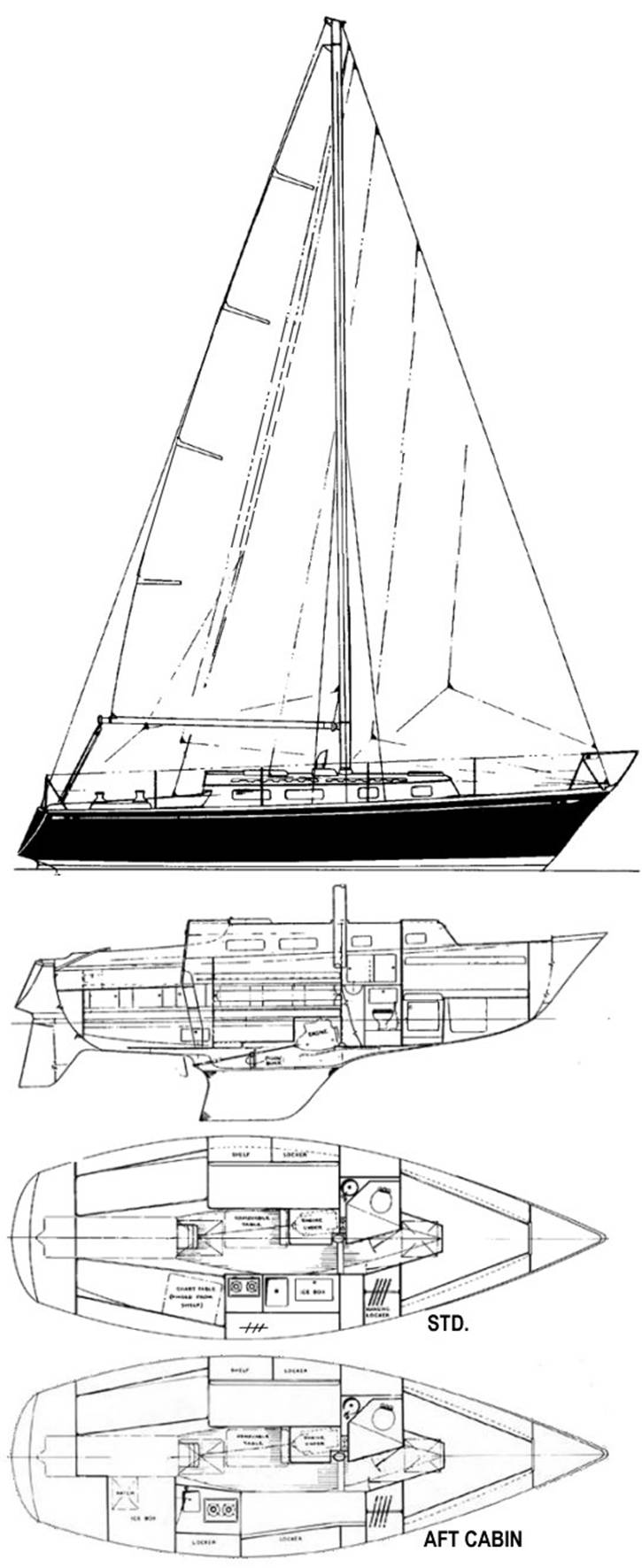

Hull Type:	Fin with rudder on skeg		Rig Type:	Masthead Sloop
LOA:	29.92' / 9.12m		LWL:	24.25' / 7.39m
Beam:	10.00' / 3.05m		Listed SA:	449 ft^2 / 41.71 m^2
Draft (max.)	4.92' / 1.50m		Draft (min.)
Displacement:	8750 lbs./ 3969 kgs.		Ballast:	3600 lbs. / 1633 kgs.
Sail Area/Disp.1:	16.97	Bal./Disp.:	41.14%	Disp./Len.:	273.92
Designer:	Sparkman & Stephens
Builder:	Tartan Marine (USA)
Construction:	FG			Bal. type:	Lead
First Built:	1970	Last Built:	1978	# Built:	606
AUXILIARY POWER (orig. equip.)
Make:	Universal		Model:	Atomic 4
Type:	Gas		HP:	30
RIG AND SAIL PARTICULARS KEY
I(IG):	39.00' / 11.89m		J:	13.00' / 3.96m
P:	34.00' / 10.36m		E:	11.50' / 3.51m
PY:			EY:
ISP:			SPL/TPS:
SA(Fore.):	253.50 ft^2 / 23.55 m^2		SA(Main):	195.50 ft^2 / 18.16 m^2
Sail Area (100% fore+main triangles):				449.00 ft^2 / 41.71 m^2
Sail Area/Disp.2:	16.97	Est. Forestay Length.:		41.11' / 12.53m
BUILDERS (past & present)
More about & boats built by:			Tartan Marine
DESIGNER
More about & boats designed by:			Sparkman & Stephens
RELATED LINKS
Tartan 30 Association (Chesapeake)			tartan30.org
